Technical Specification Sheet · DXD-PEL-4060
Pellet Activated Carbon
Columnar activated carbon for gas-phase beds, available in common 1.5-8 mm diameters with CTC, hardness and pressure-drop requirements reviewed by system.
1. Executive Engineering Summary & Grade Capabilities
- Uniform cylindrical extruded pellets (1.5 mm, 2 mm, 3 mm, 4 mm, 6 mm, and 8 mm diameters) engineered for low pressure drop and high mechanical crush strength (>=95% hardness) in deep-bed gas scrubbers.
- Configurable gas-phase activity from 50% to 75%+ CTC (ASTM D3467) / 20–30%+ Butane Activity (ASTM D5742) for VOC abatement, solvent recovery, biogas desulfurization, and odor control.
- Available in standard virgin coal/coconut pellets as well as KOH, NaOH, KI, and sulfur-impregnated grades for H2S, acid gases, and mercury removal.
2. Physical & Commercial Profile
| Raw Material Base | Primarily anthracite or bituminous coal powder; selected specialty grades may use wood or coconut carbon |
|---|---|

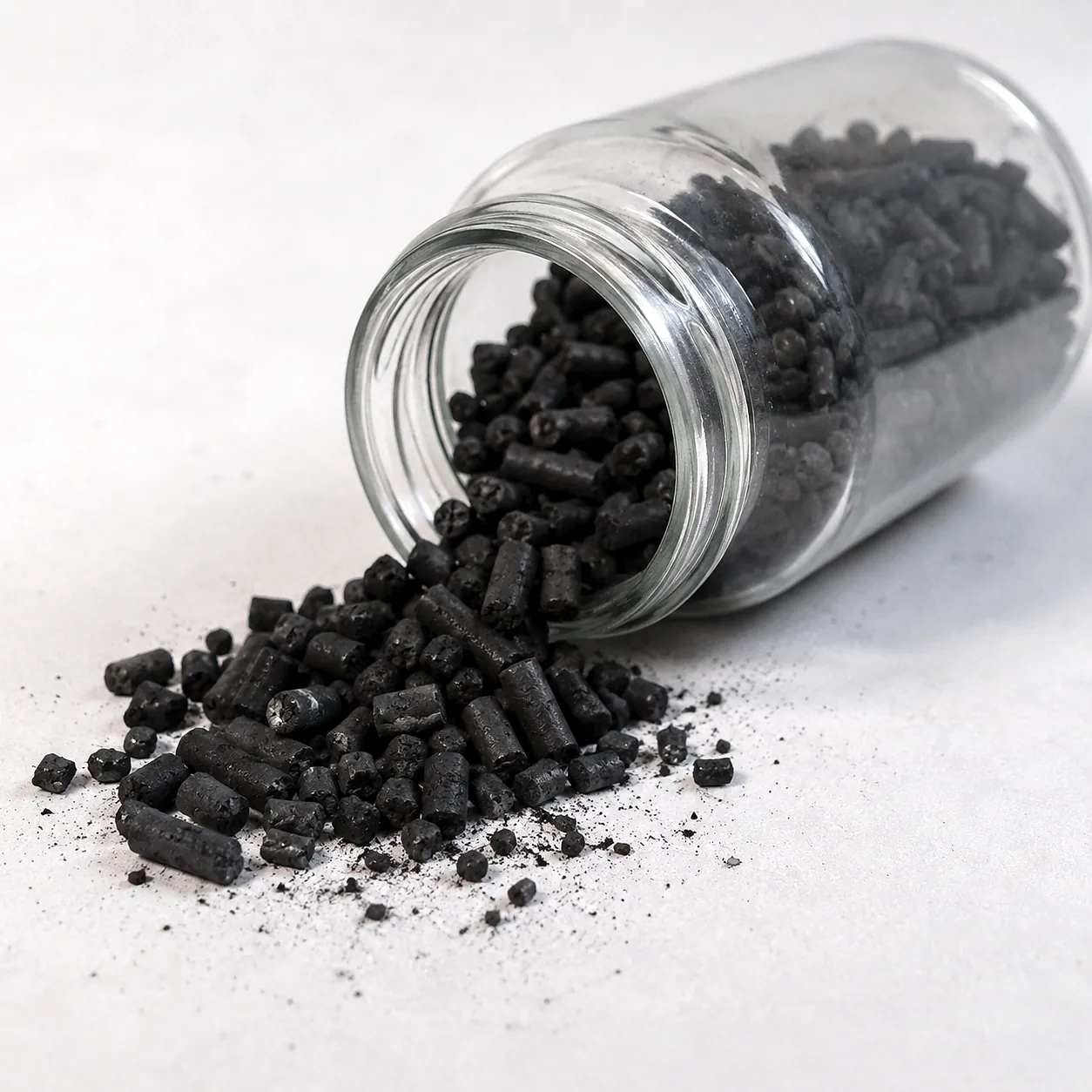

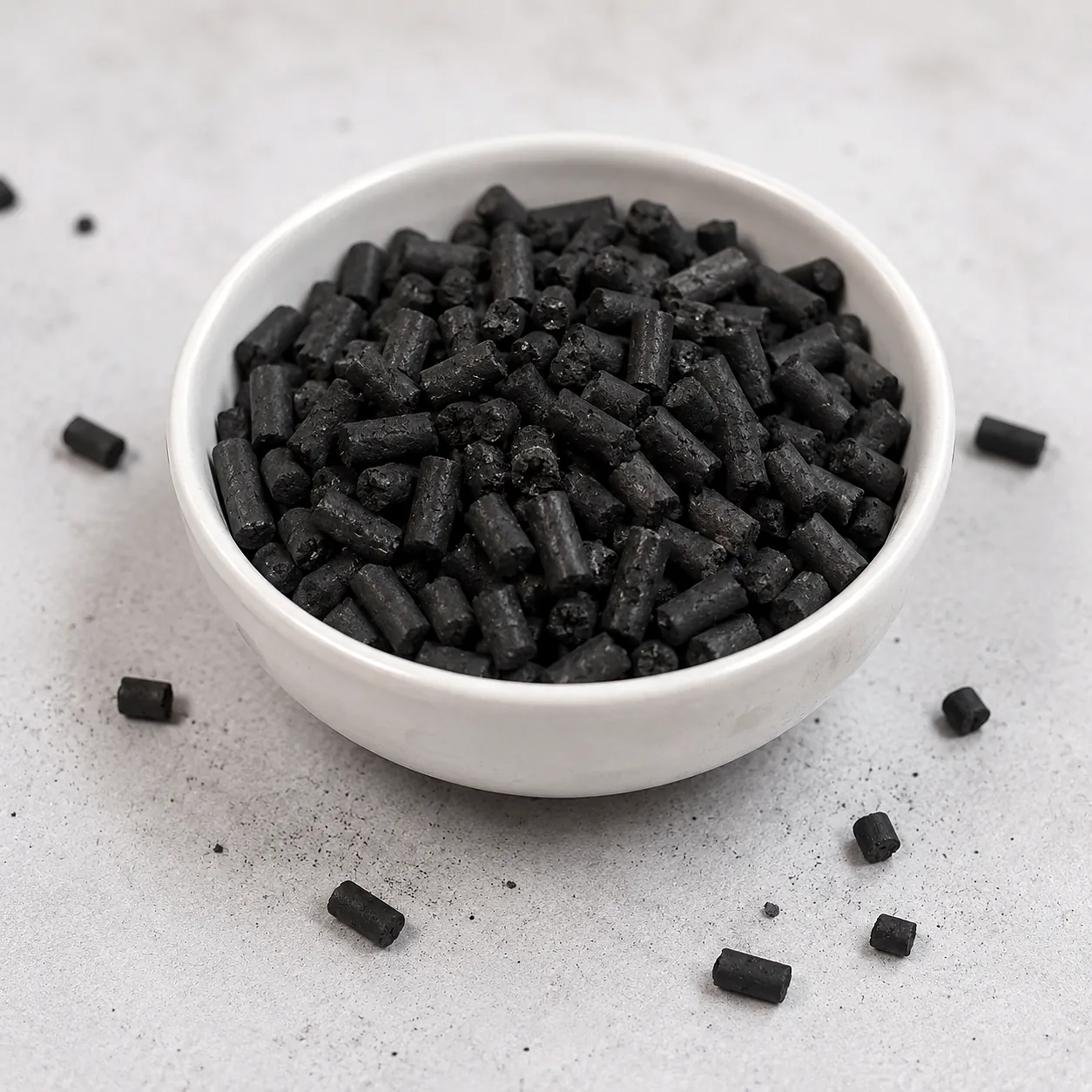

| Physical Form | Cylindrical or columnar pellets |
| Standard Sizing / Mesh | Common diameters: 1.5, 2, 3, 4, 5, 6 or 8 mm; 4 mm is widely requested |
| Configurable Options | Diameter, length, CTC, iodine value, hardness, loading density and selected KOH, NaOH, KI, sulfur or application-specific impregnation. |
| Standard Export Packing | 25 kg PP woven / kraft bags, or 500 kg / 1,000 kg FIBC bulk bags (palletized & shrink-wrapped) |
| Standard MOQ & Lead Time | 1 Metric Ton standard MOQ · 15–25 days typical factory dispatch |
3. Configurable Manufacturing Ranges
| Iodine value | Typical configurable range: 700-1,100 mg/g |
|---|---|
| CTC activity | Typical range: 40-90%; common grades are often 50-75% |
| Hardness | Typical range: 90-97%; >=95% is a common sourcing target |
| Ash | Typically <=12%; lower-ash gas grades require confirmation |
| Moisture | Typically <=5% |
| pH | Typically 8-11; impregnated grades depend on the impregnant |
| Apparent density | Typical range: 400-700 g/L |
Note: Common methods include ASTM D3467 for CTC, ASTM D5742/D5228 for butane activity or working capacity, ASTM D3802 for hardness and ASTM D2854 for apparent density.
4. Sample Batch Certificate of Analysis (COA) — Reference Benchmark
The table below illustrates a representative factory QC test report from our Shizuishan, Ningxia laboratory. Every commercial shipment includes a batch-specific COA tested against your signed purchase contract.
| Test Parameter | Unit | Test Standard / Method | Contract Specification Limit | Representative Batch Result |
|---|---|---|---|---|
| Pellet Diameter | mm | Caliper / Sieve |
4.0 +/- 0.3 (or 1.5 / 2.0 / 3.0) | 4.02 PASS |
| CTC Adsorption Activity | wt% | ASTM D3467 |
>= 60.0 (configurable 50–80%) | 63.5 PASS |
| Butane Working Capacity / Activity | wt% | ASTM D5742 |
>= 23.0 | 24.8 PASS |
| Iodine Number | mg/g | ASTM D4607 |
>= 950 | 985 PASS |
| Hardness | % | ASTM D3802 |
>= 95.0 | 96.8 PASS |
| Moisture Content | wt% | ASTM D2867 |
<= 5.0 | 2.9 PASS |
| Apparent Density | g/L | ASTM D2854 |
460 – 520 | 488 PASS |
5. International Brand Cross-Reference & Grade Replacement Guide
For procurement teams benchmarking alternative supply or secondary-source qualification. Reference brand names (Calgon Carbon, Norit / Cabot, Jacobi Carbons) are trademarks of their respective owners; DXD Carbon is an independent manufacturer supplying specification-matched grades verified by ASTM lab testing.
| Reference Brand | International Reference Series | DXD Recommended Equivalent | Primary Application Duty | Engineering Match Basis |
|---|---|---|---|---|
| Norit (Cabot) | Norit RB3 / RB4 / RST3 | DXD-PEL-3060 / DXD-PEL-4060 | VOC abatement, industrial gas scrubbing, biogas & solvent recovery | Matched on 3 mm or 4 mm extruded diameter, >=60% CTC activity, and >=95% ball-pan hardness |
| Calgon Carbon | AP4-60 / BPL / Centaur (Gas Phase) | DXD-PEL-4060 / DXD-PEL-IMP | Air stripper off-gas, HVAC odor control & H2S removal | Matched on 4 mm pellet geometry, butane activity (ASTM D5742), and optional alkaline/catalytic treatment |
| Jacobi Carbons | EcoSorb GX / AddSorb Series | DXD-PEL-4060 / DXD-PEL-KOH | Municipal odor control, WWTP H2S scrubbers & acid gas polishing | Matched on low bed pressure drop, apparent density (460–520 g/L), and H2S breakthrough capacity |
