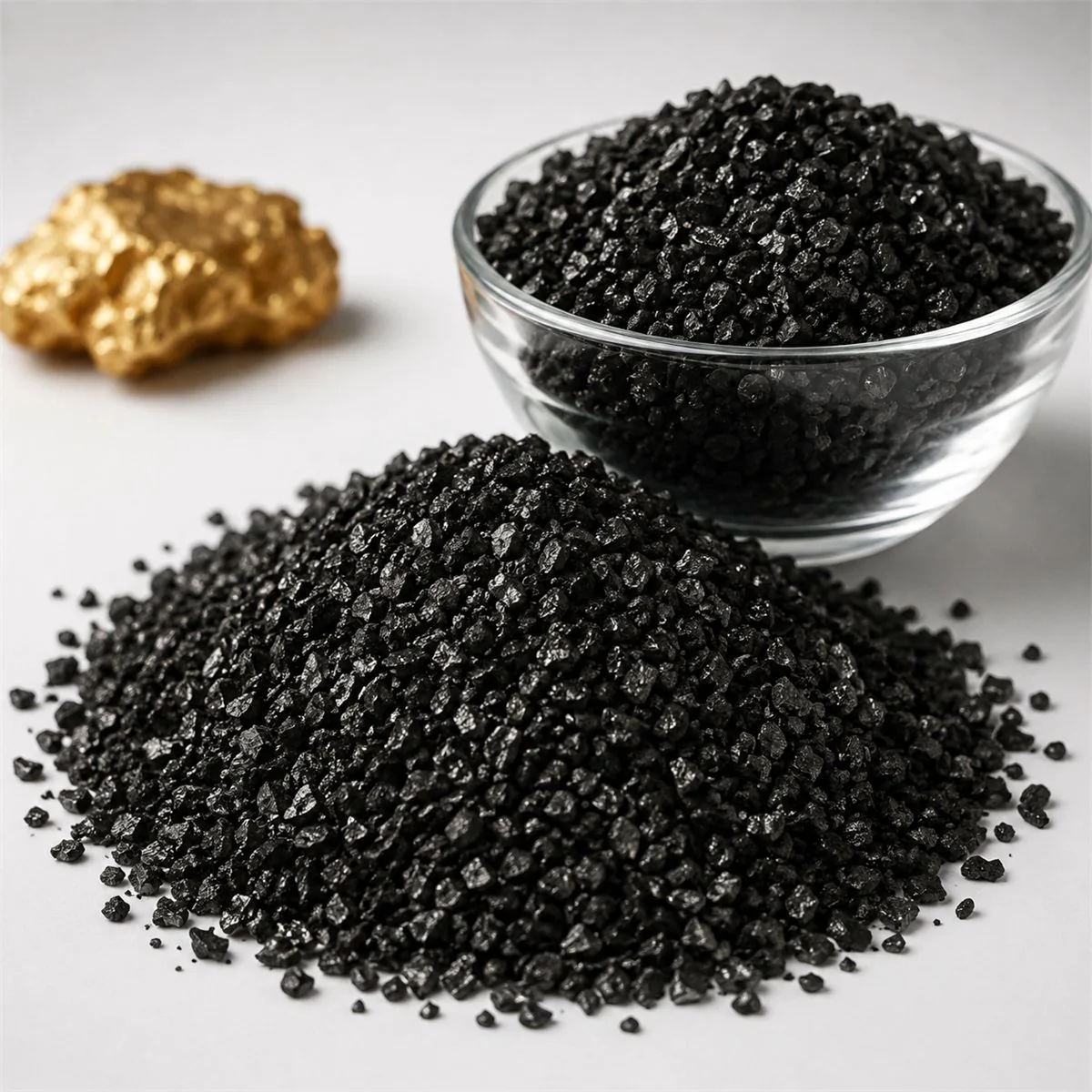

Image 1 of 5: Gold recovery activated carbon granules with gold ore samples
Product views for material identification. Confirm the grade with a sample and your order specification.
Uniform granular or water-polished activated carbon
Activated Carbon for Gold Recovery
High-hardness coconut shell GAC for CIP, CIL and CIC circuits, reviewed for mesh retention, abrasion, ash and mine-specific gold adsorption testing.
- Iodine value
- Common target: >=1,000 mg/g; premium directions may reach 1,000-1,200 mg/g
- Hardness
- Common target: >=97%, together with abrasion and fines control
- Ash
- Common target: <=5%
- Gold-specific testing
- Adsorption rate, loading capacity, K/R values or a mine-specified CIL bottle-roll test
Standard sizing · Review grading & confirm particle size
- 6x12 US Mesh (Coarse CIL/CIP)
- 6x16 US Mesh (Standard CIL/CIP)
- 8x16 US Mesh (CIC Column / Fast Kinetics)
Common sourcing directions: 6x12, 6x16 or 8x16 mesh; final range must match the CIP/CIL equipment
Prefer to chat? WhatsApp an engineer · +86 181 3567 0683
- MOQ
- 1 metric ton (1,000 kg) for standard products
- Packing
- 25 kg bags · 500 / 1,000 kg FIBC
- Free sample
- Normally 5-7 business days for an available standard sample
- Lead time
- Typically 15–25 days
01
Gold Recovery Carbon at a glance
What sets it apart, and where it is used.
-
Material & pore structure
Pre-attritioned and water-polished mature coconut shell GAC in 6x12 (3.35–1.70 mm), 6x16 (3.35–1.18 mm), and 8x16 (2.36–1.18 mm) mesh to eliminate platelet particles and prevent gold loss through interstage screens.
-
Washing & grade options
Engineered for maximum attrition resistance (>=98% ASTM D3802 ball-pan hardness) coupled with rapid gold cyanide [Au(CN)2-] adsorption kinetics (R-value) and high equilibrium loading capacity (K-value).
-
Direct Shizuishan plant supply
Supplied in heavy-duty 500 kg / 1,000 kg FIBC bulk bags or 25 kg woven bags with 2–5 kg metallurgical lab samples available for mine-site bottle-roll and elution qualification.
02
Gold Recovery Carbon specifications
Typical and configurable ranges, with the test method for each property.
Raw materialSelected high-hardness coconut shell · Uniform granular or water-polished activated carbon
| Raw material | Selected high-hardness coconut shell |
|---|---|
| Physical form | Uniform granular or water-polished activated carbon |
| Standard sizing | Common sourcing directions: 6x12, 6x16 or 8x16 mesh; final range must match the CIP/CIL equipment |
| Iodine value | Common target: >=1,000 mg/g; premium directions may reach 1,000-1,200 mg/g |
| Hardness | Common target: >=97%, together with abrasion and fines control |
| Ash | Common target: <=5% |
| Moisture | Typically <=5% |
| pH | Typically 8-11 |
| Apparent density | Typical reference range: 480-550 g/L |
| Gold-specific testing | Adsorption rate, loading capacity, K/R values or a mine-specified CIL bottle-roll test |
| Custom manufacturing | 6x12, 6x16 or 8x16 sizing, iodine value, hardness, abrasion, ash, pre-treatment, water polishing and mine-specified gold adsorption testing. |
Iodine value alone does not qualify a gold-recovery carbon. Circuit-specific adsorption kinetics, capacity, hardness, abrasion and particle retention should be evaluated together. Final guaranteed values and test methods must be agreed in the order specification.
03
COA reference & quality documents
Illustrative ASTM test parameters and the quality checks behind every shipment.
Factory & ISO 9001 documents
Illustrative COA only — batch confirmation required. These example values have no identified lot or test date. They are not a certificate for supplied material or a statement of batch acceptance. Request a dated, batch-specific COA against your signed specification.
| Parameter | Unit | Test method | Example limit | Illustrative value |
|---|---|---|---|---|
| Iodine Number | mg/g | ASTM D4607 | >= 1,050 (or >= 1,000) | 1,075 |
| CTC Activity | wt% | ASTM D3467 | >= 55.0 | 58.4 |
| Ball-Pan Hardness | % | ASTM D3802 | >= 98.0 | 98.7 |
| Total Ash Content | wt% | ASTM D2866 | <= 4.0 | 3.2 |
| Moisture Content | wt% | ASTM D2867 | <= 5.0 | 3.1 |
| Apparent Density | g/L | ASTM D2854 | 480 – 530 | 502 |
| Undersize (<12 Mesh or <16 Mesh) | wt% | ASTM D2862 | <= 3.0 | 1.4 |
Batch-specific COA is issued against your signed contract specification.
Quality review
- Contracted mesh distribution and oversize/undersize limits
- Hardness, abrasion loss and fines generation
- Ash, moisture and apparent density
- Gold adsorption kinetics or mine-specified bottle-roll test
- Batch COA and retained sample when agreed
ISO 9001ASTM Lab
Specify the grade, not just the material
Circuit type, screen aperture, slurry or solution conditions, target mesh, hardness and abrasion criteria, sample-test method, quantity and packing.
Third-party inspection: SGS, Intertek, Bureau Veritas, TUV or CCIC arranged by contract.
Retained samples & loading records
Each export lot is cross-checked against the agreed benchmark sample and archived in sealed sample jars for post-shipment reference.
How an order is specified and checked 6 steps
- Requirement reviewConfirm application, form, particle size, target indexes, quantity and destination.
- Specification agreementSeparate guaranteed values from typical values and state each applicable test method.
- Sample evaluationUse a standard or project sample with a test plan relevant to the buyer's process.
- Batch confirmationReview the agreed production-batch results in the COA before shipment.
- Inspection optionArrange SGS, Intertek, Bureau Veritas, TUV, CCIC or another agreed inspector if required.
- Loading recordLoading photographs, container number and seal details can be supplied when agreed in the order.
04
Grading & operating references
Standard gradings, equipment fit and typical process design ranges.
| Grading | Aperture range | Hardness reference | Fines / kinetics reference | Circuit fit |
|---|---|---|---|---|
| 6x12 US Mesh (Coarse CIL/CIP) | 1.70 – 3.35 mm | ≥ 98.0% Hardness | Undersize ≤ 2% | High-viscosity agitated CIL/CIP pulp tanks with 0.8–1.0 mm interstage screens |
| 6x16 US Mesh (Standard CIL/CIP) | 1.18 – 3.35 mm | ≥ 98.0% Hardness | High K-Value Rate | Balanced fast gold-cyanide adsorption kinetics and reliable screen retention |
| 8x16 US Mesh (CIC Column / Fast Kinetics) | 1.18 – 2.36 mm | ≥ 98.5% Hardness | Maximum Surface Area | Carbon-in-Column (CIC) clear pregnant leach solution (PLS) & rapid-kinetics circuits |
Operating design references
| Circuit Compatibility | Carbon-in-Leach (CIL), Carbon-in-Pulp (CIP), and Carbon-in-Column (CIC) heap leach |
|---|---|
| Typical Carbon Concentration in Pulp | 10 – 25 g/L in CIL/CIP agitated tanks |
| Interstage Screen Aperture | 0.80 – 1.00 mm wedge-wire screens (matched to 6x12 or 6x16 mesh carbon) |
| Pre-Conditioning Protocol | Factory mechanical attritioning + water de-dusting removes weak platelets prior to bagging |
| Elution & Acid Wash Compatibility | Withstands Zadra / AARL high-temperature caustic-cyanide elution and HCl acid washing |
| Thermal Kiln Regeneration | Engineered for 650–750 °C rotary kiln reactivation with minimal attrition loss |
Operating ranges are selection references, not system-performance guarantees. Confirm suitability using the actual feed, equipment and treatment target.
05
Where Gold Recovery Carbon is used
Typical applications and process selection checks.
-
Match 6x12, 6x16 or 8x16 mesh to the circuit screens, transfer equipment and carbon-retention conditions.
-
Review hardness together with abrasion loss and fines generation because a single hardness value does not describe circuit losses.
-
Compare adsorption rate and loading capacity under representative mine-solution conditions rather than iodine value alone.
-
Agree the sample method, acceptance values and scale-up criteria before using a test result for a bulk purchase.
What to check for your process
- Match 6x12, 6x16 or 8x16 mesh to the circuit screens, transfer equipment and carbon-retention conditions.
- Review hardness together with abrasion loss and fines generation because a single hardness value does not describe circuit losses.
- Compare adsorption rate and loading capacity under representative mine-solution conditions rather than iodine value alone.
- Agree the sample method, acceptance values and scale-up criteria before using a test result for a bulk purchase.
06
Packing, MOQ & delivery
Commercial terms to compare quotations on the same basis.
- MOQ
- 1.0 metric ton
- Free sample
- 5–7 business days
- Lead time
- 15–25 days
- Reply
- 24 hours
Orders below 1 metric ton are reviewed against the grade, available stock, packing and freight cost.
Standard samples are normally free; the buyer usually covers international courier cost. Sample quantity is matched to the product and test method.
Typically 15-25 days after specification, packing, order documents and agreed payment conditions are confirmed
Standard inquiries receive a reply within 24 hours on business days.
-
25 kg bags
Inner PE moisture barrier with an outer PP woven or multi-wall kraft paper bag. Palletized or loose.
Neutral export markings or custom OEM labels
-
500 kg / 1,000 kg FIBC
Heavy-duty PP jumbo bags with 4 lifting loops, top filling spout and bottom discharge spout.
Matched to receiving hoppers and pallet requirements
-
Container loads
- 20GP
- 9 – 11 MT
- 40HQ
- 20 – 24 MT · 20–22 pallets
Empty-container inspection, pallet strapping and seal photographs available by agreement.
| Packing | 25 kg bags, 500 or 1,000 kg FIBC bulk bags, and pallet options by order |
|---|---|
| Standard MOQ | 1 metric ton (1,000 kg) for standard products |
| Trial orders | Orders below 1 metric ton are reviewed against the grade, available stock, packing and freight cost. |
| Samples | Standard samples are normally free; the buyer usually covers international courier cost. Sample quantity is matched to the product and test method. |
| Sample lead time | Normally 5-7 business days for an available standard sample |
| Production lead time | Typically 15-25 days after specification, packing, order documents and agreed payment conditions are confirmed |
| Ports | Qingdao or Tianjin are commonly used; the final loading port is confirmed with the route and trade term. |
| Trade terms | EXW, FCA, FOB, CFR and CIF under Incoterms 2020; DAP, DDP, CIP or another term requires route-specific review. |
Stock, final MOQ, production date, guaranteed values, packing cost, freight, payment terms and inspection scope are confirmed for the specific quotation and contract.
07
Calgon, Norit & Jacobi equivalents
Reference grades for specification review and lab matching.
References support a specification review, not a claim of identical performance, certification or affiliation. Confirm suitability by comparative testing in your process.
| Reference brand / grade | Proposed specification / application | Comparison criteria |
|---|---|---|
| Calgon Carbon GRC-22 / DG-11 Gold Series | Pre-Attritioned Coconut Gold GAC (6x12 / 6x16 / 8x16)CIL, CIP & CIC gold cyanidation circuits | Matched on ≥98% ASTM D3802 ball-pan hardness, platelet removal, and high K/R gold adsorption kinetics |
| Jacobi Carbons GoldSorb 5500 / GoldSorb 6000 / PicaGold | High-Activity CIL/CIP Coconut CarbonHigh-grade and low-grade gold ore leaching & elution | Matched on 1,050–1,150 mg/g iodine, ≥60% CTC, ultra-low undersize fines, and thermal regeneration stability |
| Norit (Cabot) RO 3515 / GCN Gold Grades | Abrasion-Resistant Precious Metal Recovery CarbonGold and silver cyanide complex recovery | Matched on mechanical attrition resistance in agitated pulp and rapid elution recovery |
All third-party brand and grade names are trademarks of their respective owners. They are used for identification only; no affiliation, endorsement or authorization is implied.
08
Gold Recovery Carbon sourcing questions
Answers use the same values as the tables on this page.
Which mesh is used for CIP or CIL?
Common directions include 6x12, 6x16 and 8x16 mesh, but screen aperture, transfer equipment and attrition conditions determine the final contract range.
Why are hardness and abrasion important?
Carbon losses, fines generation and screen retention directly affect circuit operation. A hardness number should be reviewed together with abrasion loss and the agreed test method.
Can project test samples be supplied?
Yes. Standard samples are normally free, while larger 2-5 kg project samples for bottle-roll or column testing are reviewed against the project and courier requirements.
