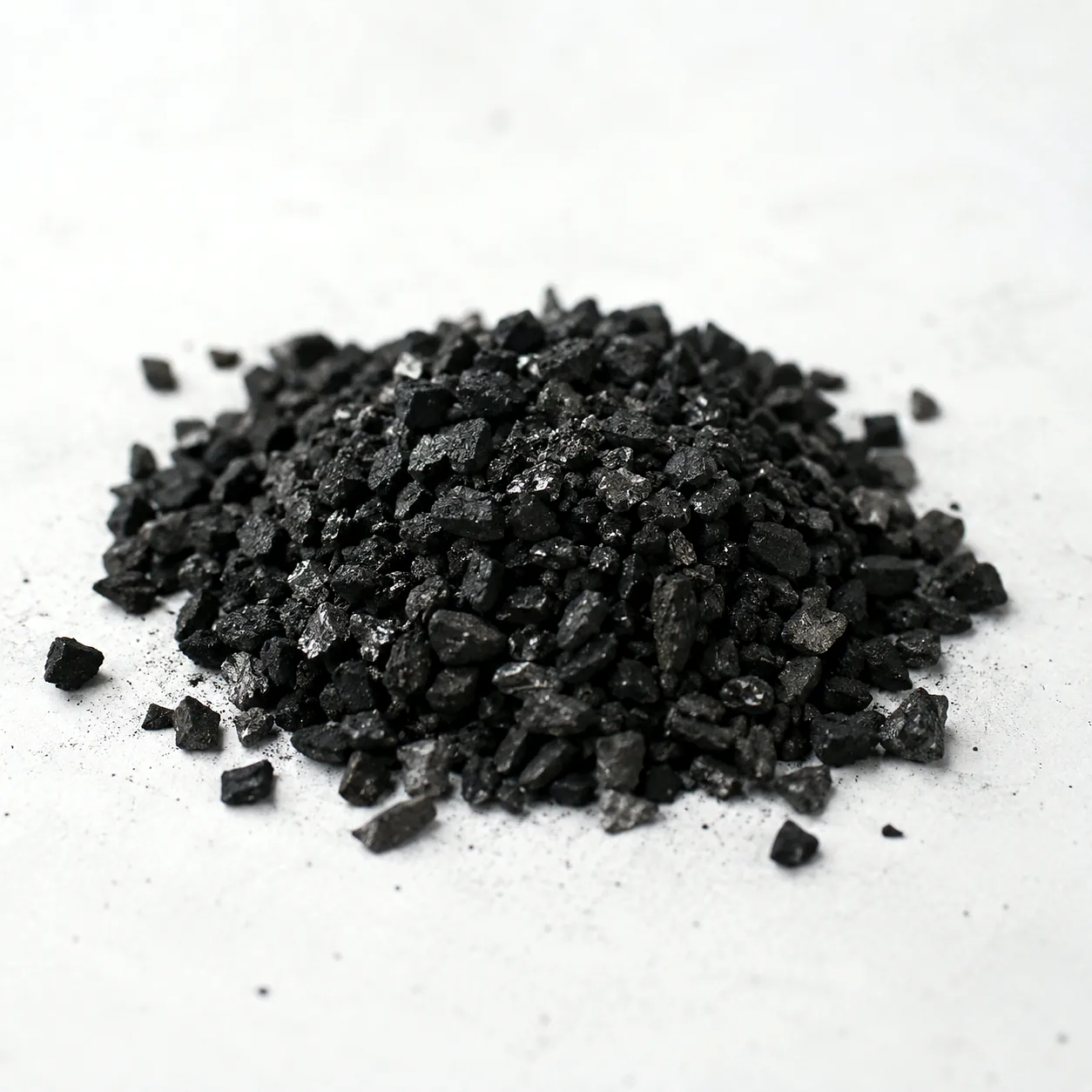

Image 1 of 5: Coal based granular activated carbon product pile
Product views for material identification. Confirm the grade with a sample and your order specification.
Irregular granular activated carbon
Coal Based Granular Activated Carbon
Coal based GAC with configurable mesh, iodine value, CTC, hardness and washing options for industrial filtration and adsorption beds.
- Iodine value
- 800-1,050 mg/gTypical configurable range
- Hardness
- ≥90%Typically; higher-hardness grades can be reviewed
- Ash
- 8-15%Typical range; acid-washed grades can be lower
- Apparent density
- 450-550 g/LTypical range
Standard sizing · Review grading & confirm particle size
4x8, 6x12, 8x16, 8x30, 12x20, 12x30, 20x40 or 30x60 mesh
Prefer to chat? WhatsApp an engineer · +86 181 3567 0683
- MOQ
- 1 metric ton (1,000 kg) for standard products
- Packing
- 25 kg bags · 500 / 1,000 kg FIBC
- Free sample
- Normally 5-7 business days for an available standard sample
- Lead time
- Typically 15–25 days
01
Coal Based GAC at a glance
What sets it apart, and where it is used.
-
Material & pore structure
Balanced micro- and mesoporous pore network derived from selected Ningxia anthracite and bituminous coal blends, ideal for high-molecular-weight organics, COD, color bodies, and municipal/industrial water beds.
-
Washing & grade options
Supplied in 8x30, 12x40, 8x16, and 4x8 mesh with 800–1,050 mg/g iodine value (ASTM D4607), 120–200 mg/g methylene blue, and high wetting density (450–550 g/L) for stable backwash bed stratification.
-
Direct Shizuishan plant supply
Cost-effective bulk alternative to international agglomerated coal GAC grades with 10,000+ MT/year factory capacity, 25 kg or 500/1,000 kg FIBC export packaging, and full ASTM COA verification.
02
Coal Based GAC specifications
Typical and configurable ranges, with the test method for each property.
Raw materialAnthracite, bituminous coal or a selected coal blend · Irregular granular activated carbon
| Raw material | Anthracite, bituminous coal or a selected coal blend |
|---|---|
| Physical form | Irregular granular activated carbon |
| Standard sizing | 4x8, 6x12, 8x16, 8x30, 12x20, 12x30, 20x40 or 30x60 mesh |
| Iodine value | Typical configurable range: 800-1,050 mg/g |
| CTC activity | Typical configurable range: 50-75% |
| Methylene blue | Typical optional range: 100-200 mg/g |
| Hardness | Typically >=90%; higher-hardness grades can be reviewed |
| Ash | Typical range: 8-15%; acid-washed grades can be lower |
| Moisture | Typically <=5% |
| pH | Typically 8-11; washed or acid-washed pH is configurable |
| Apparent density | Typical range: 450-550 g/L |
| Custom manufacturing | Coal blend, mesh, iodine value, CTC, methylene blue, hardness, ash, acid washing, water washing and pore-structure direction. |
Common methods include ASTM D4607 for iodine value, ASTM D3467 for CTC, ASTM D3802 for hardness and ASTM D2862 for particle-size distribution. Final guaranteed values and test methods must be agreed in the order specification.
03
COA reference & quality documents
Illustrative ASTM test parameters and the quality checks behind every shipment.
Factory & ISO 9001 documents
Illustrative COA only — batch confirmation required. These example values have no identified lot or test date. They are not a certificate for supplied material or a statement of batch acceptance. Request a dated, batch-specific COA against your signed specification.
| Parameter | Unit | Test method | Example limit | Illustrative value |
|---|---|---|---|---|
| Iodine Number | mg/g | ASTM D4607 | >= 900 (or >= 1,000) | 956 |
| Methylene Blue Adsorption | mg/g | GB/T 7702.6 | >= 150 | 175 |
| Moisture Content | wt% | ASTM D2867 | <= 5.0 | 3.2 |
| Abrasion / Hardness | % | ASTM D3802 | >= 90.0 | 92.4 |
| Total Ash Content | wt% | ASTM D2866 | <= 12.0 | 9.8 |
| Apparent Density | g/L | ASTM D2854 | 450 – 540 | 490 |
| Mesh Size (8x30 US Sieve) | wt% in range | ASTM D2862 | >= 90.0 | 94.5 |
Batch-specific COA is issued against your signed contract specification.
Quality review
- ASTM D2862 particle-size distribution
- ASTM D3802 hardness
- ASTM D4607 iodine value
- ASTM D3467 CTC activity
- Batch COA and agreed sampling method
ISO 9001ASTM Lab
Specify the grade, not just the material
Water or gas conditions, target contaminant, vessel design, mesh, target iodine or CTC value, quantity, packing and destination.
Third-party inspection: SGS, Intertek, Bureau Veritas, TUV or CCIC arranged by contract.
Retained samples & loading records
Each export lot is cross-checked against the agreed benchmark sample and archived in sealed sample jars for post-shipment reference.
How an order is specified and checked 6 steps
- Requirement reviewConfirm application, form, particle size, target indexes, quantity and destination.
- Specification agreementSeparate guaranteed values from typical values and state each applicable test method.
- Sample evaluationUse a standard or project sample with a test plan relevant to the buyer's process.
- Batch confirmationReview the agreed production-batch results in the COA before shipment.
- Inspection optionArrange SGS, Intertek, Bureau Veritas, TUV, CCIC or another agreed inspector if required.
- Loading recordLoading photographs, container number and seal details can be supplied when agreed in the order.
04
Grading & operating references
Standard gradings, equipment fit and typical process design ranges.
Confirm the mesh grade before ordering. Listed only in standard sizing: 12x20, 12x30, 20x40, 30x60, 4x8, 6x12 mesh. Listed only in the detailed grading table: 12x40, 8x20 mesh. These references do not list the same mesh grades. Confirm the required sieve distribution, retaining screen and acceptance limits with your quotation.
| Grading | Aperture range | Effective size (D10) | Uniformity coefficient | Process fit |
|---|---|---|---|---|
| 8x16 US Mesh | 1.18 – 2.36 mm | 1.25 – 1.45 mm | ≤ 1.5 | High-flow industrial wastewater beds & suspended-solids tolerant filters |
| 8x20 US Mesh | 0.85 – 2.36 mm | 1.00 – 1.20 mm | ≤ 1.6 | Deep municipal gravity filter beds & high hydraulic loading rates |
| 8x30 US Mesh | 0.60 – 2.36 mm | 0.85 – 1.00 mm | ≤ 1.8 | Standard municipal surface water treatment (TOC, taste, odor, pesticides) |
| 12x40 US Mesh | 0.425 – 1.70 mm | 0.55 – 0.75 mm | ≤ 1.7 | Pressure adsorbers, PFAS/DBP removal & industrial chemical process polishing |
Operating design references
| Typical Bed Depth | 1.0 – 3.0 meters (3.3 – 10.0 ft) |
|---|---|
| Empty Bed Contact Time (EBCT) | 7.5 – 25 minutes (Surface Water TOC/COD & Industrial Effluent) |
| Superficial Liquid Velocity | 8 – 30 m/hr (3.2 – 12 gpm/ft²) |
| Backwash Bed Expansion | 25% – 35% bed expansion (stratifies cleanly by particle density) |
| Backwash Drained Density | 400 – 460 kg/m³ (25 – 29 lb/ft³) |
| Thermal Reactivation | Suitable for multi-cycle rotary or multi-hearth kiln reactivation |
Operating ranges are selection references, not system-performance guarantees. Confirm suitability using the actual feed, equipment and treatment target.
05
Where Coal Based GAC is used
Typical applications and process selection checks.
-
Start with contaminant size, liquid or gas conditions and bed design before choosing an iodine or CTC target.
-
Select mesh against vessel screens, flow rate, pressure drop and any backwash or regeneration procedure.
-
Use washing, pH and ash limits when mineral carryover or downstream purity is important.
-
For VOC service, add CTC, butane activity or a contaminant-specific test instead of relying on iodine value alone.
What to check for your process
- Start with contaminant size, liquid or gas conditions and bed design before choosing an iodine or CTC target.
- Select mesh against vessel screens, flow rate, pressure drop and any backwash or regeneration procedure.
- Use washing, pH and ash limits when mineral carryover or downstream purity is important.
- For VOC service, add CTC, butane activity or a contaminant-specific test instead of relying on iodine value alone.
06
Packing, MOQ & delivery
Commercial terms to compare quotations on the same basis.
- MOQ
- 1.0 metric ton
- Free sample
- 5–7 business days
- Lead time
- 15–25 days
- Reply
- 24 hours
Orders below 1 metric ton are reviewed against the grade, available stock, packing and freight cost.
Standard samples are normally free; the buyer usually covers international courier cost. Sample quantity is matched to the product and test method.
Typically 15-25 days after specification, packing, order documents and agreed payment conditions are confirmed
Standard inquiries receive a reply within 24 hours on business days.
-
25 kg bags
Inner PE moisture barrier with an outer PP woven or multi-wall kraft paper bag. Palletized or loose.
Neutral export markings or custom OEM labels
-
500 kg / 1,000 kg FIBC
Heavy-duty PP jumbo bags with 4 lifting loops, top filling spout and bottom discharge spout.
Matched to receiving hoppers and pallet requirements
-
Container loads
- 20GP
- 9 – 11 MT
- 40HQ
- 20 – 24 MT · 20–22 pallets
Empty-container inspection, pallet strapping and seal photographs available by agreement.
| Packing | 25 kg bags, 500 or 1,000 kg FIBC bulk bags, and pallet options by order |
|---|---|
| Standard MOQ | 1 metric ton (1,000 kg) for standard products |
| Trial orders | Orders below 1 metric ton are reviewed against the grade, available stock, packing and freight cost. |
| Samples | Standard samples are normally free; the buyer usually covers international courier cost. Sample quantity is matched to the product and test method. |
| Sample lead time | Normally 5-7 business days for an available standard sample |
| Production lead time | Typically 15-25 days after specification, packing, order documents and agreed payment conditions are confirmed |
| Ports | Qingdao or Tianjin are commonly used; the final loading port is confirmed with the route and trade term. |
| Trade terms | EXW, FCA, FOB, CFR and CIF under Incoterms 2020; DAP, DDP, CIP or another term requires route-specific review. |
Stock, final MOQ, production date, guaranteed values, packing cost, freight, payment terms and inspection scope are confirmed for the specific quotation and contract.
07
Calgon, Norit & Jacobi equivalents
Reference grades for specification review and lab matching.
References support a specification review, not a claim of identical performance, certification or affiliation. Confirm suitability by comparative testing in your process.
| Reference brand / grade | Proposed specification / application | Comparison criteria |
|---|---|---|
| Calgon Carbon Filtrasorb 300 / Filtrasorb 400 | Bituminous Coal GAC (8x30 / 12x40 Mesh)Municipal drinking water, TOC/COD & wastewater | Matched on 8x30 or 12x40 mesh, balanced micro/mesopore network, and ≥900–1,050 mg/g iodine |
| Norit (Cabot) GAC 830 / GAC 1240 | Steam-Activated Coal GAC (Fixed-Bed Grade)Surface water filtration, industrial effluent & remediation | Matched on backwash expansion hydraulics, apparent density (440–500 g/L), and methylene blue capacity |
| Jacobi Carbons AquaSorb 1000 / AquaSorb 2000 | Industrial & Municipal Coal GACProcess water, landfill leachate & organic polishing | Matched on coal-based transport pore structure and mechanical abrasion resistance |
All third-party brand and grade names are trademarks of their respective owners. They are used for identification only; no affiliation, endorsement or authorization is implied.
08
Coal Based GAC sourcing questions
Answers use the same values as the tables on this page.
How should coal based GAC be selected?
Selection starts with the liquid or gas conditions, contaminant class, bed design, mesh and required adsorption index. Iodine value alone does not define application performance.
Can acid-washed coal based GAC be produced?
Acid washing, water washing, controlled pH and lower-ash specifications can be reviewed. Customized MOQ and lead time depend on the requested values.
What documents are supplied?
TDS and SDS can be supplied during quotation, and a batch COA can be supplied for each production or shipment batch.
09
Other activated carbon lines
When another raw material or form fits the job better.
- Coconut Shell GAC 6x12, 8x16, 8x30, 12x40 or 20x40 mesh; approximately 0.45-3.35 mm Hard coconut shell GAC for water, air and precious-metal recovery systems, supplied in common mesh ranges with batch-specific quality confirmation.
- Gold Recovery Carbon Common sourcing directions: 6x12, 6x16 or 8x16 mesh; final range must match the CIP/CIL equipment High-hardness coconut shell GAC for CIP, CIL and CIC circuits, reviewed for mesh retention, abrasion, ash and mine-specific gold adsorption testing.
- Wood Based PAC Common 200 or 325 mesh grades; target screen passing rate is specified by order Wood based PAC with configurable fineness, methylene blue, pH, ash and filtration properties for liquid-phase dosing and decolorization.
- Decolorization PAC Common 200 or 325 mesh grades, normally specified with a minimum passing rate Fine powdered activated carbon for liquid decolorization, specified by target liquid, mesh passing rate, methylene blue, pH, ash and filtration behavior.
- Pellet Activated Carbon Common diameters: 1.5, 2, 3, 4, 5, 6 or 8 mm; 4 mm is widely requested Columnar activated carbon for gas-phase beds, available in common 1.5-8 mm diameters with CTC, hardness and pressure-drop requirements reviewed by system.
- Data revision
- sha256-9519cc3d0fe271e1
Data revision identifies the content, not a batch or approval. View the printable technical sheet.
