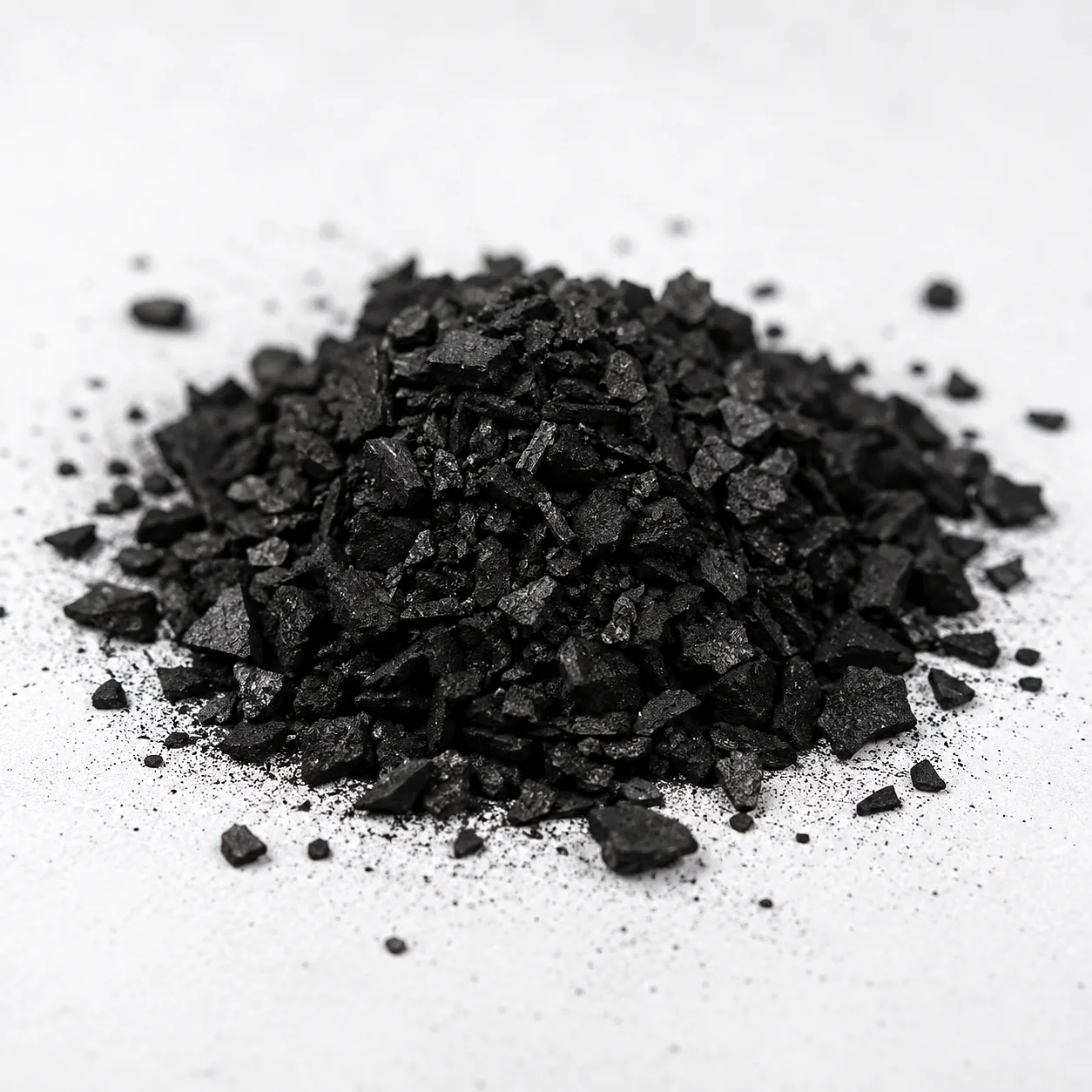

Image 1 of 5: Coconut shell granular activated carbon product pile
Product views for material identification. Confirm the grade with a sample and your order specification.
Irregular granular activated carbon

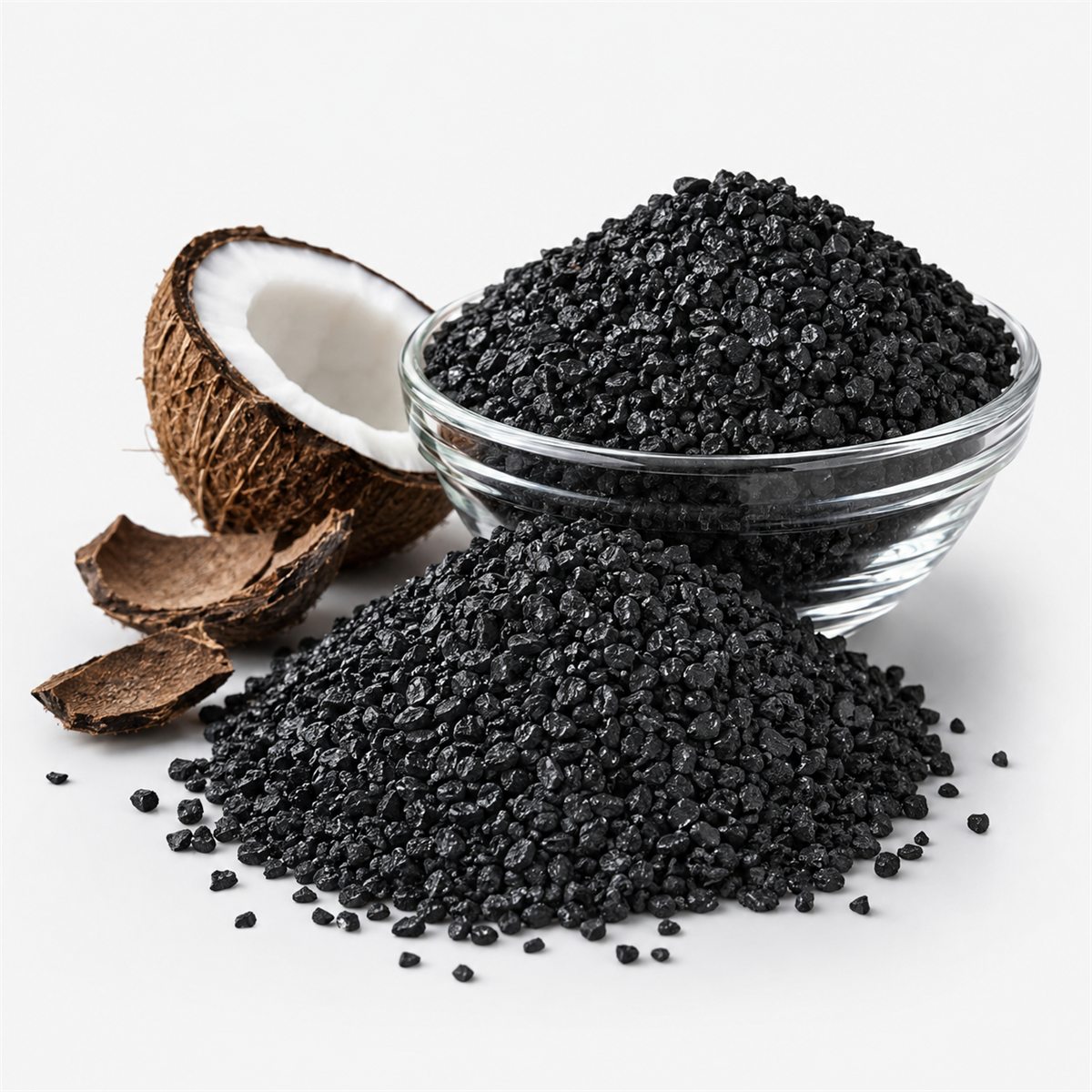

Coconut Shell Granular Activated Carbon
Hard coconut shell GAC for water, air and precious-metal recovery systems, supplied in common mesh ranges with batch-specific quality confirmation.
- Iodine value
- 950-1,100 mg/gTypical configurable range
- Hardness
- ≥90%Typically; water-treatment grades can be specified at ≥95%
- Ash
- ≤5%Typically; lower-ash grades require confirmation
- Apparent density
- 430-550 g/LTypical range
Standard sizing · Review grading & confirm particle size
6x12, 8x16, 8x30, 12x40 or 20x40 mesh; approximately 0.45-3.35 mm
Prefer to chat? WhatsApp an engineer · +86 181 3567 0683
- MOQ
- 1 metric ton (1,000 kg) for standard products
- Packing
- 25 kg bags · 500 / 1,000 kg FIBC
- Free sample
- Normally 5-7 business days for an available standard sample
- Lead time
- Typically 15–25 days
01
Coconut Shell GAC at a glance
What sets it apart, and where it is used.
-
Material & pore structure
High-micropore steam-activated coconut shell GAC configured in 6x12, 8x16, 8x30, 12x40, and 20x40 mesh with configurable 950–1,100+ mg/g iodine value (ASTM D4607) and >=95% hardness (ASTM D3802).
-
Washing & grade options
Available in standard water-washed or acid-washed (low ash <=3%, neutral pH, low acid-soluble iron) grades for potable water treatment, cartridge filtration, ultrapure water, and VOC polishing.
-
Direct Shizuishan plant supply
Direct factory supply from our 50,050 m² Ningxia manufacturing base (ISO 9001 certified) with 1 MT standard MOQ, free bench-test samples, and batch-specific COA against international reference grades.
02
Coconut Shell GAC specifications
Typical and configurable ranges, with the test method for each property.
Raw materialSelected coconut shell, typically steam activated · Irregular granular activated carbon
| Raw material | Selected coconut shell, typically steam activated |
|---|---|
| Physical form | Irregular granular activated carbon |
| Standard sizing | 6x12, 8x16, 8x30, 12x40 or 20x40 mesh; approximately 0.45-3.35 mm |
| Iodine value | Typical configurable range: 950-1,100 mg/g |
| CTC activity | 50-70% when required for gas-phase evaluation |
| Hardness | Typically >=90%; water-treatment grades can be specified at >=95% |
| Ash | Typically <=5%; lower-ash grades require confirmation |
| Moisture | Typically <=5% |
| pH | Typically 8-11; acid-washed ranges can be specified separately |
| Apparent density | Typical range: 430-550 g/L |
| Custom manufacturing | Mesh, iodine value, CTC, pH, acid washing, ash, acid-soluble iron, low-dust treatment, water washing and selected impregnation treatments. |
Common methods include ASTM D4607 for iodine value, ASTM D3802 for hardness, ASTM D2866 for ash and ASTM D2862 for particle-size distribution. Final guaranteed values and test methods must be agreed in the order specification.
03
COA reference & quality documents
Illustrative ASTM test parameters and the quality checks behind every shipment.
Factory & ISO 9001 documents
Illustrative COA only — batch confirmation required. These example values have no identified lot or test date. They are not a certificate for supplied material or a statement of batch acceptance. Request a dated, batch-specific COA against your signed specification.
| Parameter | Unit | Test method | Example limit | Illustrative value |
|---|---|---|---|---|
| Iodine Number | mg/g | ASTM D4607 | >= 1,000 | 1,038 |
| Moisture Content (as packed) | wt% | ASTM D2867 | <= 5.0 | 3.4 |
| Ball-Pan Hardness | % | ASTM D3802 | >= 95.0 | 97.2 |
| Total Ash Content | wt% | ASTM D2866 | <= 4.0 (<=3.0 acid-washed) | 3.1 |
| Apparent Density | g/L | ASTM D2854 | 450 – 530 | 485 |
| pH (Water Extract) | pH units | ASTM D3838 | 8.5 – 10.5 (or 6.5 – 8.0 AW) | 9.2 |
| Oversize / Undersize (8x30 or 12x40) | wt% | ASTM D2862 | <= 5.0 / <= 4.0 | 2.8 / 2.1 |
Batch-specific COA is issued against your signed contract specification.
Quality review
- ASTM D2862 particle-size distribution
- ASTM D3802 hardness
- ASTM D4607 iodine value
- ASTM D2866 ash
- Batch COA against the signed specification
ISO 9001ASTM Lab
Specify the grade, not just the material
Water or gas composition, target contaminant, system type, mesh, target index, quantity, packing and destination port.
Third-party inspection: SGS, Intertek, Bureau Veritas, TUV or CCIC arranged by contract.
Retained samples & loading records
Each export lot is cross-checked against the agreed benchmark sample and archived in sealed sample jars for post-shipment reference.
How an order is specified and checked 6 steps
- Requirement reviewConfirm application, form, particle size, target indexes, quantity and destination.
- Specification agreementSeparate guaranteed values from typical values and state each applicable test method.
- Sample evaluationUse a standard or project sample with a test plan relevant to the buyer's process.
- Batch confirmationReview the agreed production-batch results in the COA before shipment.
- Inspection optionArrange SGS, Intertek, Bureau Veritas, TUV, CCIC or another agreed inspector if required.
- Loading recordLoading photographs, container number and seal details can be supplied when agreed in the order.
04
Grading & operating references
Standard gradings, equipment fit and typical process design ranges.
- 6x121.70 – 3.35 mmES 1.8 – 2.1 mm · UC ≤ 1.4Gas-phase vapor adsorbers, low-ΔP pre-filters & precious metal columns
- 8x161.18 – 2.36 mmES 1.3 – 1.5 mm · UC ≤ 1.4Industrial process water columns & high-flow fixed-bed adsorbers
- 8x300.60 – 2.36 mmES 0.85 – 1.05 mm · UC ≤ 1.7Municipal gravity filters, deep-bed pressure vessels & backwashed beds
- 12x400.425 – 1.70 mmES 0.55 – 0.75 mm · UC ≤ 1.6Potable water dechlorination, PFAS/VOC polishing & industrial lead-lag vessels
- 20x500.30 – 0.85 mmES 0.35 – 0.45 mm · UC ≤ 1.5Residential/commercial POU/POE cartridges, RO pre-filtration & compact canisters
Aperture range Effective size (ES) · UC = uniformity coefficient · US sieve numbers, log scale
Confirm the mesh grade before ordering. Listed only in standard sizing: 20x40 mesh. Listed only in the detailed grading table: 20x50 mesh. These references do not list the same mesh grades. Confirm the required sieve distribution, retaining screen and acceptance limits with your quotation.
| Grading | Aperture range | Effective size (D10) | Uniformity coefficient | Process fit |
|---|---|---|---|---|
| 6x12 US Mesh | 1.70 – 3.35 mm | 1.8 – 2.1 mm | ≤ 1.4 | Gas-phase vapor adsorbers, low-ΔP pre-filters & precious metal columns |
| 8x16 US Mesh | 1.18 – 2.36 mm | 1.3 – 1.5 mm | ≤ 1.4 | Industrial process water columns & high-flow fixed-bed adsorbers |
| 8x30 US Mesh | 0.60 – 2.36 mm | 0.85 – 1.05 mm | ≤ 1.7 | Municipal gravity filters, deep-bed pressure vessels & backwashed beds |
| 12x40 US Mesh | 0.425 – 1.70 mm | 0.55 – 0.75 mm | ≤ 1.6 | Potable water dechlorination, PFAS/VOC polishing & industrial lead-lag vessels |
| 20x50 US Mesh | 0.30 – 0.85 mm | 0.35 – 0.45 mm | ≤ 1.5 | Residential/commercial POU/POE cartridges, RO pre-filtration & compact canisters |
Operating design references
| Typical Bed Depth | 0.8 – 2.5 meters (2.5 – 8.0 ft) |
|---|---|
| Empty Bed Contact Time (EBCT) | 5 – 20 minutes (Dechlorination: 3–6 min; Trace Organics/PFAS: 10–20 min) |
| Superficial Liquid Velocity | 5 – 25 m/hr (2 – 10 gpm/ft²) |
| Backwash Bed Expansion | 20% – 30% expansion for 10–15 minutes |
| Backwash Drained Density | 420 – 480 kg/m³ (26 – 30 lb/ft³) |
| Dechlorination Half-Length | 1.8 – 2.4 cm (12x40 US Mesh) |
Operating ranges are selection references, not system-performance guarantees. Confirm suitability using the actual feed, equipment and treatment target.
05
Where Coconut Shell GAC is used
Typical applications and process selection checks.
-
Match mesh distribution to the vessel, retaining screens, backwash conditions and pressure-drop limit.
-
Use iodine value as one pore-structure reference, then add CTC or an application test when gas-phase performance matters.
-
Specify hardness, ash, pH and washing requirements for repeated handling or higher-purity water service.
-
Confirm the grade with the actual water, gas or precious-metal test rather than raw material name alone.
What to check for your process
- Match mesh distribution to the vessel, retaining screens, backwash conditions and pressure-drop limit.
- Use iodine value as one pore-structure reference, then add CTC or an application test when gas-phase performance matters.
- Specify hardness, ash, pH and washing requirements for repeated handling or higher-purity water service.
- Confirm the grade with the actual water, gas or precious-metal test rather than raw material name alone.
06
Packing, MOQ & delivery
Commercial terms to compare quotations on the same basis.
- MOQ
- 1.0 metric ton
- Free sample
- 5–7 business days
- Lead time
- 15–25 days
- Reply
- 24 hours
Orders below 1 metric ton are reviewed against the grade, available stock, packing and freight cost.
Standard samples are normally free; the buyer usually covers international courier cost. Sample quantity is matched to the product and test method.
Typically 15-25 days after specification, packing, order documents and agreed payment conditions are confirmed
Standard inquiries receive a reply within 24 hours on business days.
-
25 kg bags
Inner PE moisture barrier with an outer PP woven or multi-wall kraft paper bag. Palletized or loose.
Neutral export markings or custom OEM labels
-
500 kg / 1,000 kg FIBC
Heavy-duty PP jumbo bags with 4 lifting loops, top filling spout and bottom discharge spout.
Matched to receiving hoppers and pallet requirements
-
Container loads
- 20GP
- 9 – 11 MT
- 40HQ
- 20 – 24 MT · 20–22 pallets
Empty-container inspection, pallet strapping and seal photographs available by agreement.
| Packing | 25 kg bags, 500 or 1,000 kg FIBC bulk bags, and pallet options by order |
|---|---|
| Standard MOQ | 1 metric ton (1,000 kg) for standard products |
| Trial orders | Orders below 1 metric ton are reviewed against the grade, available stock, packing and freight cost. |
| Samples | Standard samples are normally free; the buyer usually covers international courier cost. Sample quantity is matched to the product and test method. |
| Sample lead time | Normally 5-7 business days for an available standard sample |
| Production lead time | Typically 15-25 days after specification, packing, order documents and agreed payment conditions are confirmed |
| Ports | Qingdao or Tianjin are commonly used; the final loading port is confirmed with the route and trade term. |
| Trade terms | EXW, FCA, FOB, CFR and CIF under Incoterms 2020; DAP, DDP, CIP or another term requires route-specific review. |
Stock, final MOQ, production date, guaranteed values, packing cost, freight, payment terms and inspection scope are confirmed for the specific quotation and contract.
07
Calgon, Norit & Jacobi equivalents
Reference grades for specification review and lab matching.
References support a specification review, not a claim of identical performance, certification or affiliation. Confirm suitability by comparative testing in your process.
| Reference brand / grade | Proposed specification / application | Comparison criteria |
|---|---|---|
| Calgon Carbon OLC 12x40 / OLC 8x30 | Steam-Activated Coconut GAC (Water / Acid-Washed)Drinking water, dechlorination & cartridge filtration | Matched on 12x40 or 8x30 ASTM D2862 mesh, ≥1,000 mg/g iodine & ≥96% hardness |
| Norit (Cabot) GCN 1240 / GCN 830 | High-Micropore Coconut GAC (Neutral pH Option)Municipal water, beverage process water & fixed beds | Matched on microporous coconut structure, low dust, and configurable acid-wash pH 6.5–8.5 |
| Jacobi Carbons AquaSorb CS / AquaSorb CX | Potable & Process Water Coconut GACPoint-of-use (POU) filters, industrial water & VOCs | Matched on apparent density (450–530 g/L), low ash, and rapid wetting properties |
All third-party brand and grade names are trademarks of their respective owners. They are used for identification only; no affiliation, endorsement or authorization is implied.
08
Coconut Shell GAC sourcing questions
Answers use the same values as the tables on this page.
Which mesh sizes are commonly available?
Common sourcing ranges include 6x12, 8x16, 8x30, 12x40 and 20x40 mesh. Final mesh distribution is confirmed against the buyer's equipment and contract specification.
Can low-ash or acid-washed coconut shell GAC be supplied?
Yes. Acid washing, lower ash, controlled pH and acid-soluble iron requirements can be reviewed as customized specifications. MOQ and lead time are confirmed after the target values are known.
Is a free sample available?
Standard samples are normally free. The buyer covers international courier cost, and the sample quantity is selected for the intended test method.
09
Other activated carbon lines
When another raw material or form fits the job better.
- Coal Based GAC 4x8, 6x12, 8x16, 8x30, 12x20, 12x30, 20x40 or 30x60 mesh Coal based GAC with configurable mesh, iodine value, CTC, hardness and washing options for industrial filtration and adsorption beds.
- Gold Recovery Carbon Common sourcing directions: 6x12, 6x16 or 8x16 mesh; final range must match the CIP/CIL equipment High-hardness coconut shell GAC for CIP, CIL and CIC circuits, reviewed for mesh retention, abrasion, ash and mine-specific gold adsorption testing.
- Wood Based PAC Common 200 or 325 mesh grades; target screen passing rate is specified by order Wood based PAC with configurable fineness, methylene blue, pH, ash and filtration properties for liquid-phase dosing and decolorization.
- Decolorization PAC Common 200 or 325 mesh grades, normally specified with a minimum passing rate Fine powdered activated carbon for liquid decolorization, specified by target liquid, mesh passing rate, methylene blue, pH, ash and filtration behavior.
- Pellet Activated Carbon Common diameters: 1.5, 2, 3, 4, 5, 6 or 8 mm; 4 mm is widely requested Columnar activated carbon for gas-phase beds, available in common 1.5-8 mm diameters with CTC, hardness and pressure-drop requirements reviewed by system.
- Data revision
- sha256-d4c92ee6afff8366
Data revision identifies the content, not a batch or approval. View the printable technical sheet.
